CCM Hercules Script 1926 Hub

Anyone suggest how to best remove what I believe is called the "Driven Clutch" piece from the hub shell? Thanks



4 Comments

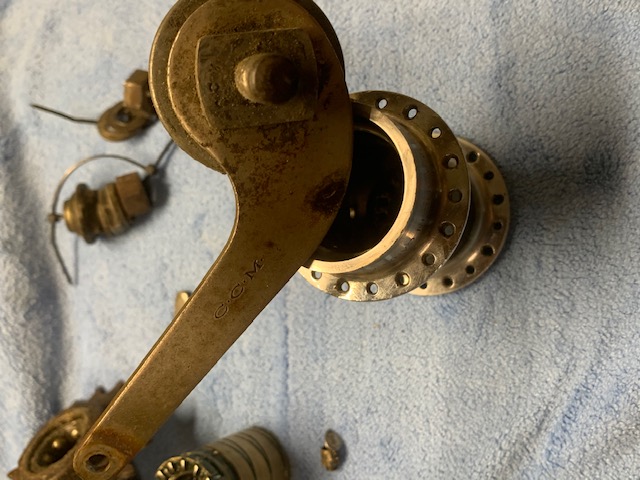

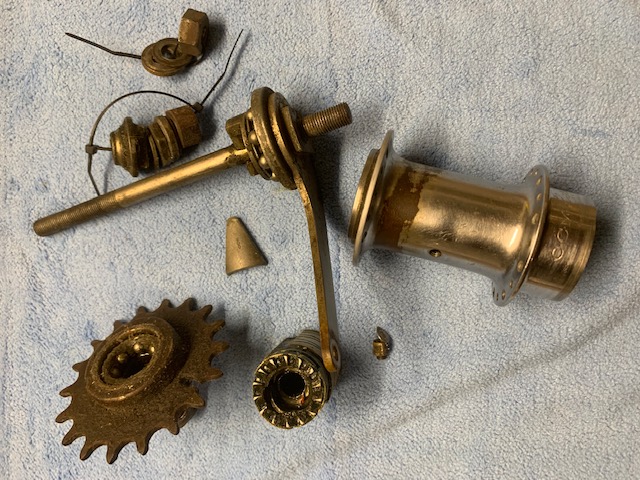

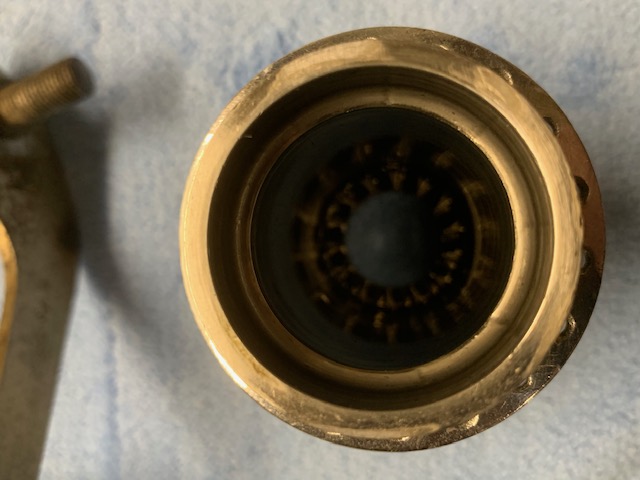

No idea why it seems so difficult to attach pictures to the original posting ... anyway here are a few pics

ccm_hercules_script_1926_hub_-_pic1.jpg ccm_hercules_script_1926_hub_-_pic7.jpg ccm_hercules_script_1926_hub_-_pic8.jpg

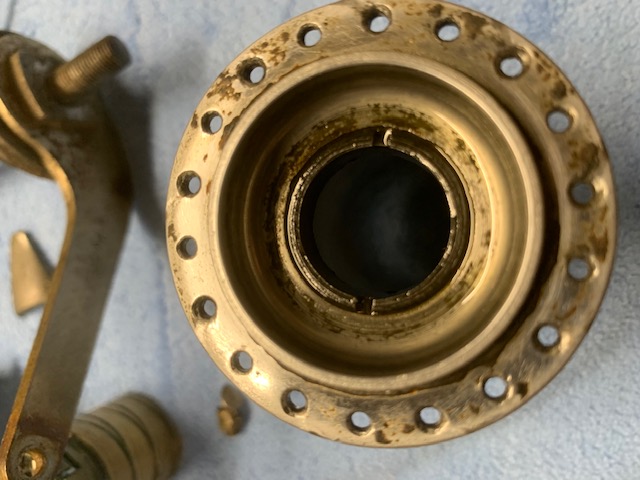

Sorry meant to attach this additional picture that show the "Driven Clutch" piece.




removing driven clutch                                                                                                                                                                              this clutch is almost impossible unless it is a in a spoked up wheel to remove and requires a special tool  it is a left hand thread  thread unless the driving clutch shows signs a lot of wear leave it be  even with the tool it is very hard to remove   i have the tool  i could lend it to use you pay shipping   after seeing tool you could make one     contact me at 902 477 9734  nova scotia   william rudolph   land line  no text  and no e mail hope this helps

Thanks William for that detailed reply. Was not sure about the thread direction. I will get back to you regarding the tool is I can't seem to make any progress without.
