CCM Ladies one-speed

Submitted by Ian Kinross on Thu, 12/19/2013 - 20:23

Hi people,

I am restoring a CCM ladies one-speed.

It has 28 x 1 3/4 Dunlop rims and a New Eadie coaster hub. Assume those are original.

The bike was originally blue but repainted red at some point and I can't seem to find a serial number on the bottom bracket or seat tube.

The bike looks late 50s to me. If possible I would like to date the bike and also get a sense of what the original seat and hand grips looked like.

Appreciate any advice. Next time I will drop in a picture of the bike.

Cheers,

Ian Kinross

Toronto



10 Comments

Submitted by Ian Kinross on Thu, 12/19/2013 - 20:28.

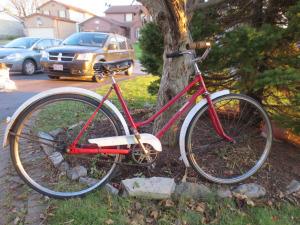

Attached is a pic of the bike.




Submitted by william rudolph on Fri, 12/20/2013 - 12:28.

some more close up pictures would be helpfull such as head badge area side and front view and any other areas    william rudolph

Submitted by Wayne.Gillies on Fri, 12/20/2013 - 15:48.

look on rear drop outs

Submitted by Ian Kinross on Fri, 12/20/2013 - 18:24.

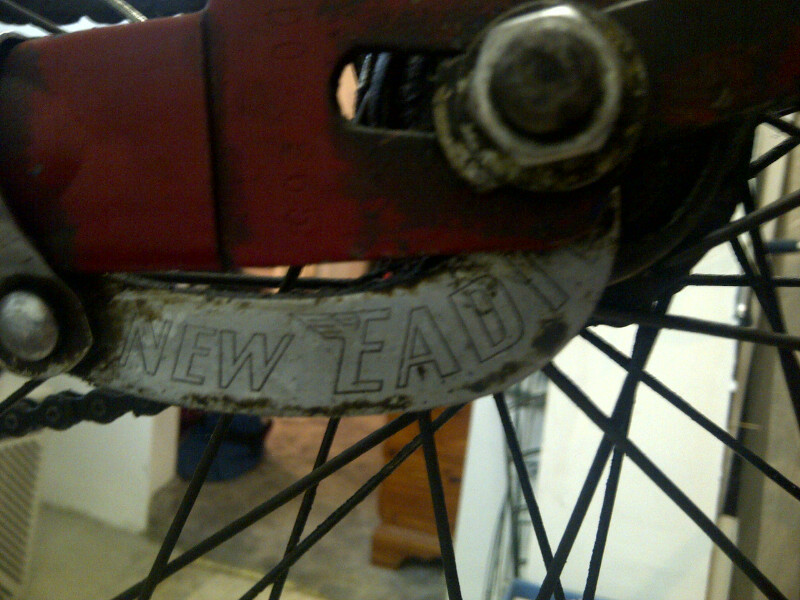

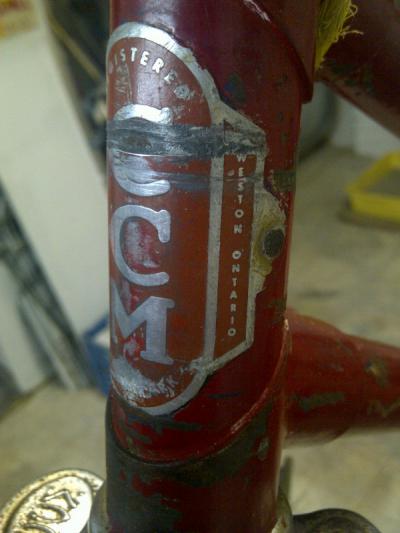

William, attached is a photo of the badge and hub.

Wayne, thanks for the tip. I found the serial number on the left dropout: DOO8865.  And on the right drop out, the letter R. I will search around a bit but if you know how that translates into date of manufacture, would appreciate it.

Thanks to you both for getting  back so promptly.

Ian

ccm_badge.jpg ccm_hub.jpg

Submitted by Wayne.Gillies on Fri, 12/20/2013 - 19:36.

Bike is early to mid 60s; the CCM marked cap on the forks was only used for a couple of years (62 - 64?).  Others who are more familiar with this period could confirm this.  There is a thread on the confusing 1960s serial #s

Submitted by Ian Kinross on Fri, 12/20/2013 - 20:21.

Thanks Wayne, yes the chrome fork caps are marked CCM. Thanks for narrowing down the date on the bike. It's about the same age as me, and in slightly better condition.



Submitted by ccmusclebikes on Sat, 12/21/2013 - 01:21.

"D" sounds like a 1964 bike to me.



Submitted by william rudolph on Sat, 12/21/2013 - 10:26.

new eadie coaster brake  the back wheel may have been replaced to keep the bike going  some one may be able to tell you the correct rear hub  if i am wrong i apoligize in advance      william rudolph

Submitted by Carl Bondi on Sat, 12/21/2013 - 14:58.

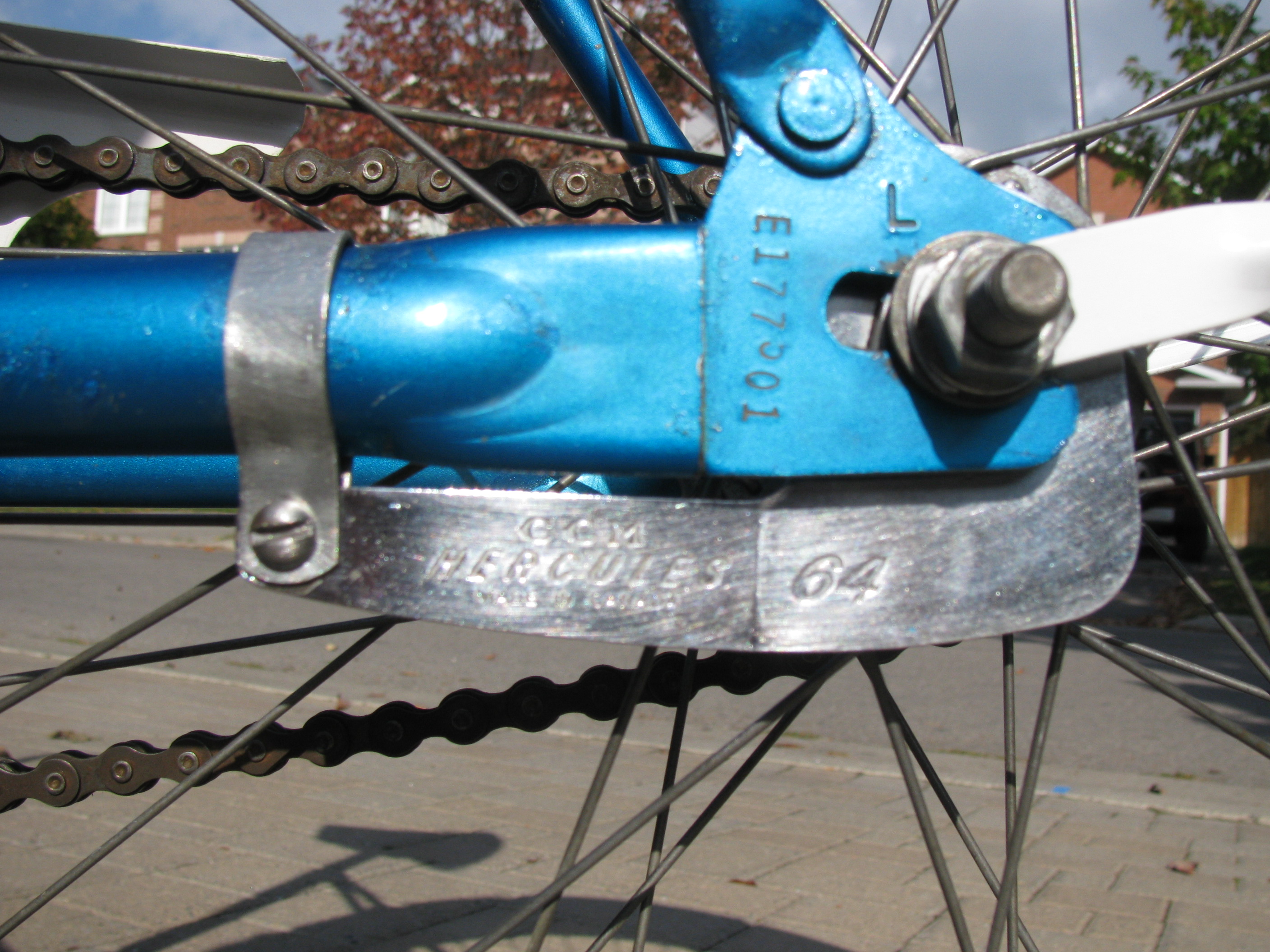

Hello: I have a ladies bike E code (1965 model year) which has a Hercules rear hub. I believe your 1964 bike should have a rear hub like this. I will post a picture of it for you.

Carl


Submitted by Ian Kinross on Sun, 12/29/2013 - 11:45.

Thanks William, Wayne, Carl and ccmusclebikes for your comments.

Based on the info you provided, I will go on the assumption that the bike is 1964, and that the rear wheel/hub may have been replaced at some point (the New Eadie hub may be older than the bike?). The serial number on the dropouts is a dead ringer for the photo Carl posted of his 1965, but with the letter D. So the bike turns 50 in 2014.

Cheers,

Ian K.
