ccm delivery bike

just repaired a 1945 ccm delivery for a friend . it has a square piece of metal that flips to 3 positions located between the top  holes where the carrier fits . what is this for

9 Comments

This secures the carrier/fork to a fixed position.

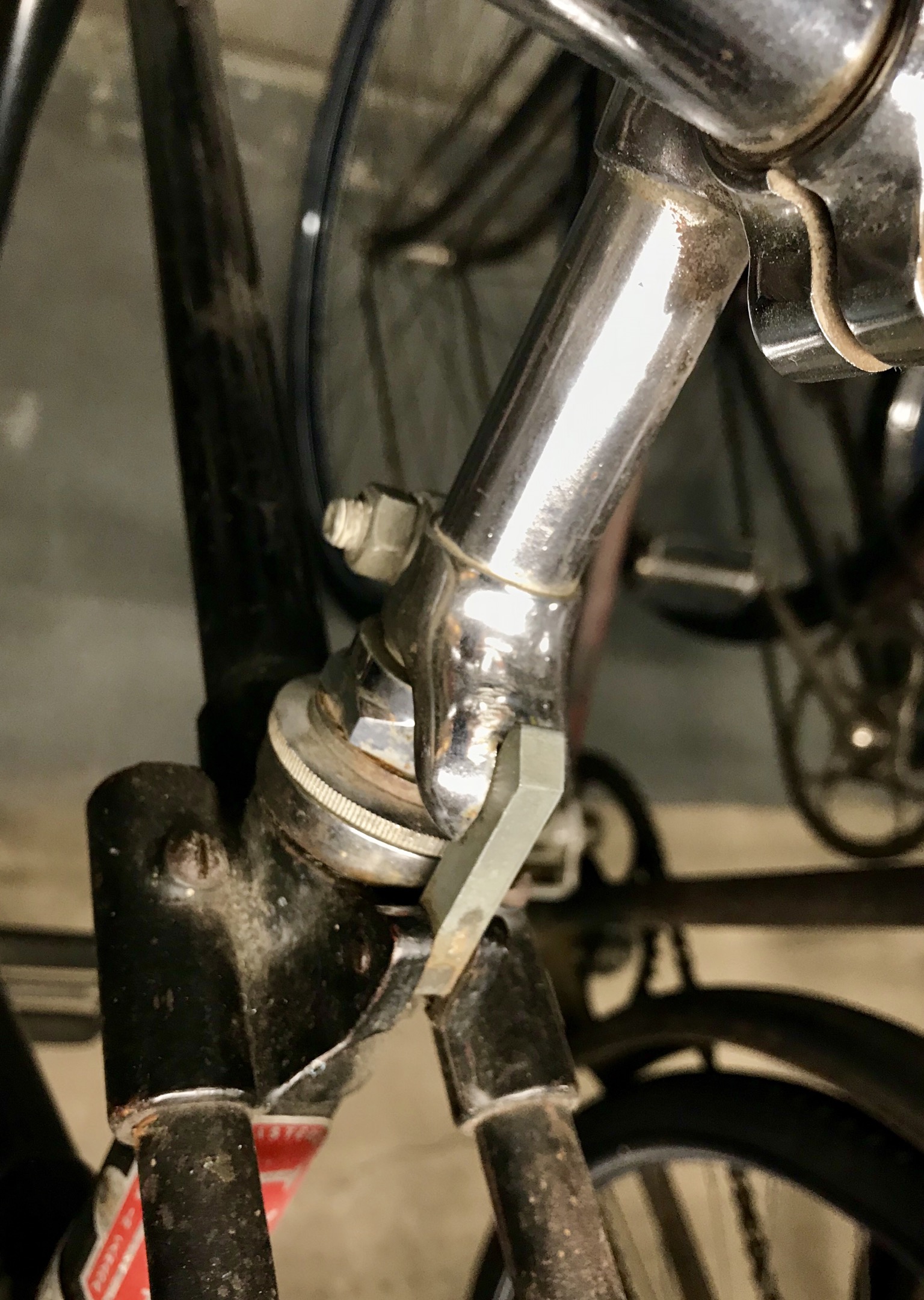

Locks the steering when kickstanded  especially if the bike is holding aload


thank you for the information and the picture i would not have figured that out in a nillion years. the top piecethat goes on the handlebar stem is missing on his .  thank you william rudolph.

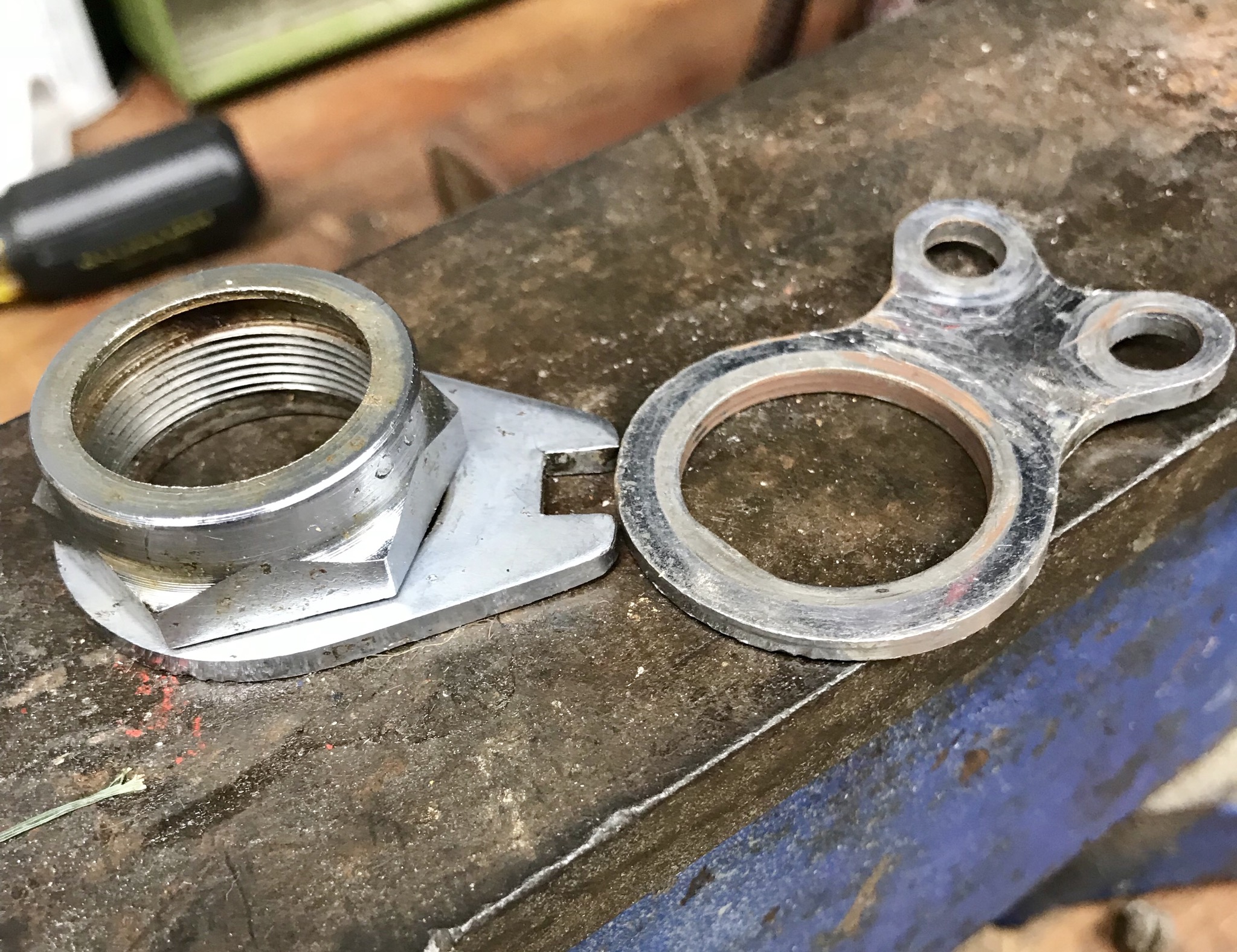

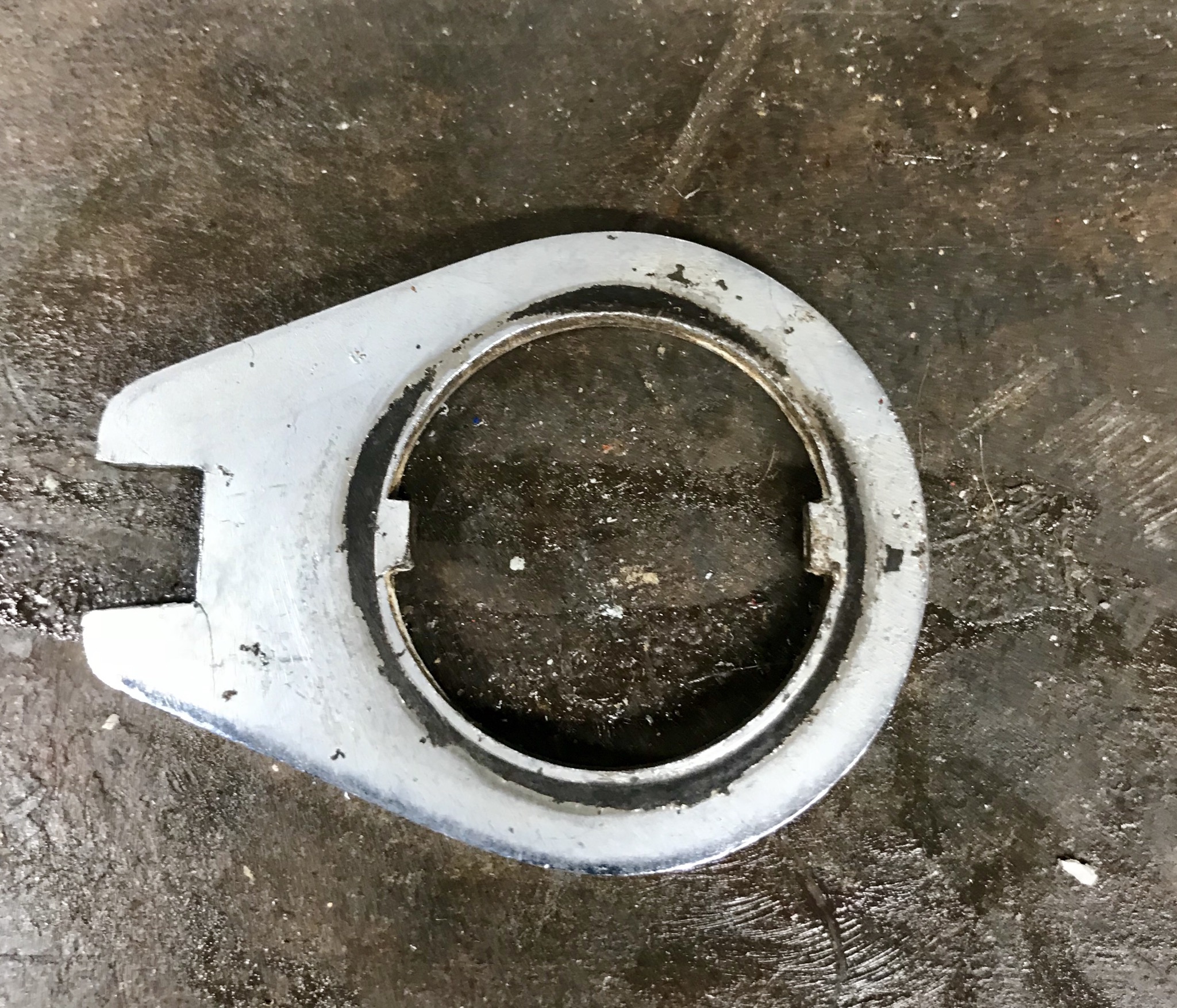

Hey Bill make one out of a truss rod bracket

050662d2-5b4c-4276-851d-b4d143841d6c.jpeg 2b5ad395-cc14-43d8-a999-3f4fc8f78eb7.jpeg a31faf6d-7a3e-4c43-b4ac-5ddd00ab0d7c.jpeg

the steering lock idea is great  thanks i will keep in the back of my mind i may get a chance to own it own day   william rudolph

recently acquired a 1954 delivery bike and was wondering if any one had a spare device for holding the fork in place i know it is a pipe dream but you dont know untill you ask    my carrier is held in place by 4 holes  but do not look to be threaded  a picture of  the pin?would be helpfull thank you william rudolph

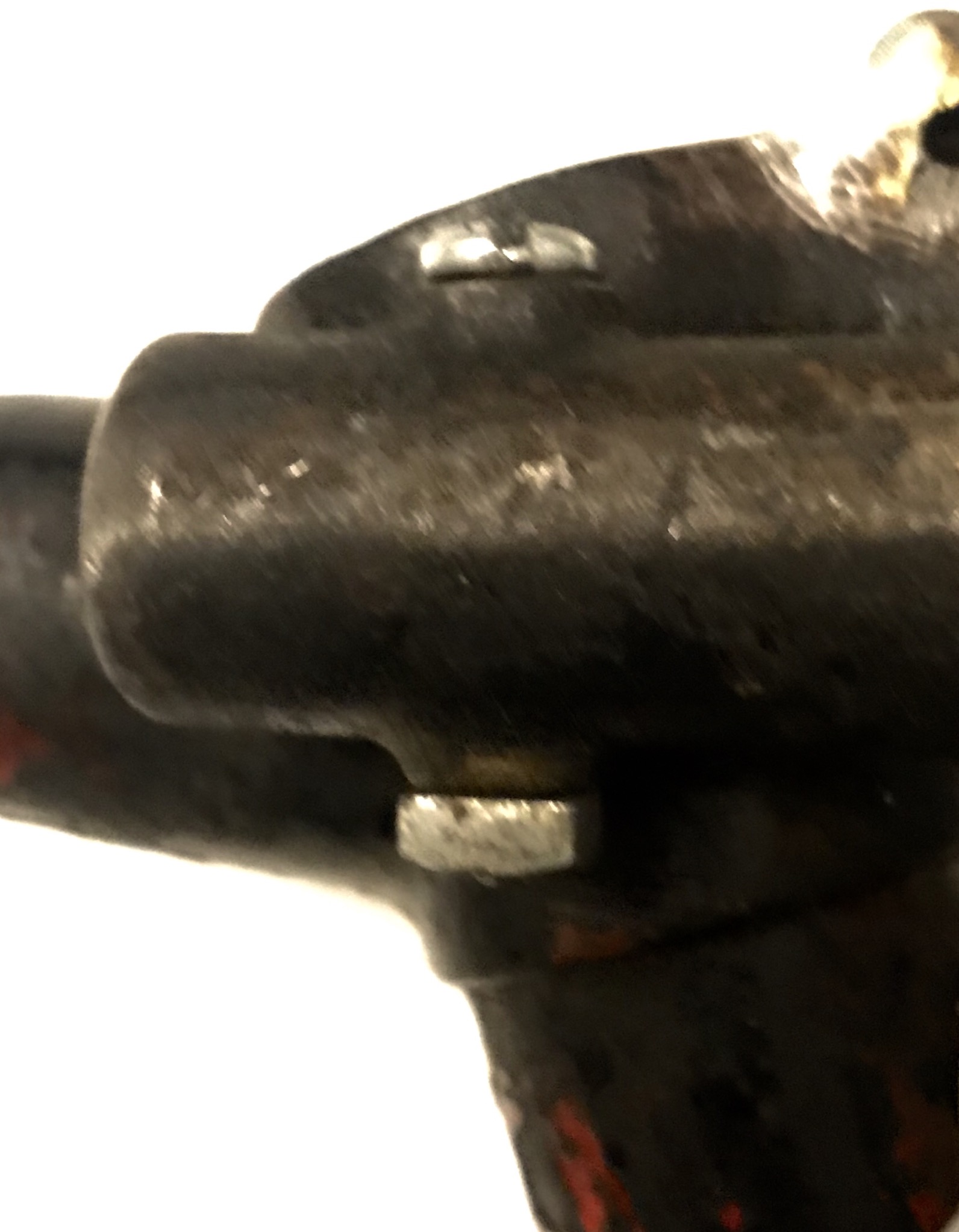

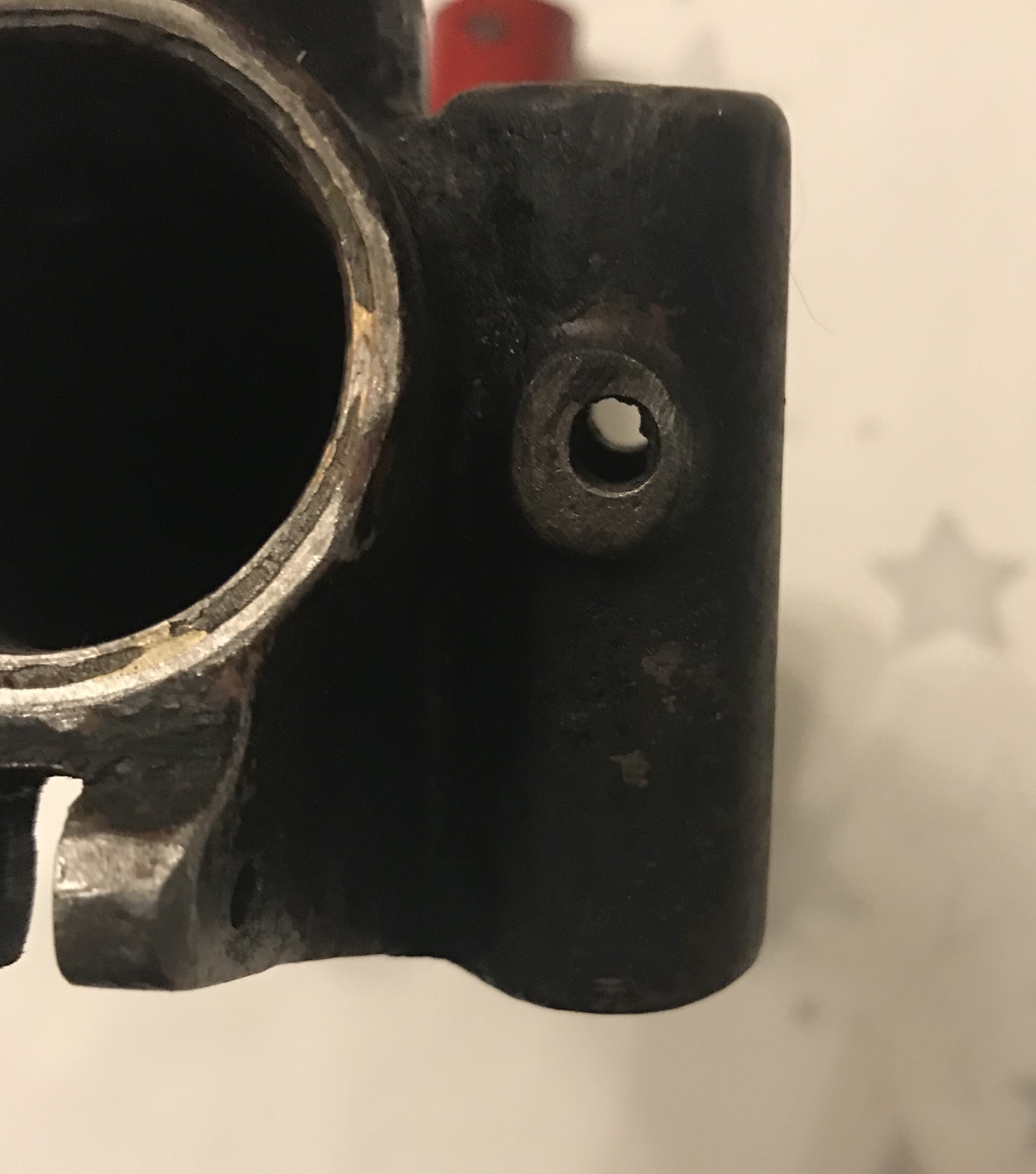

Bill the 4  holes are not threaded on the headset which the carrier  slides into

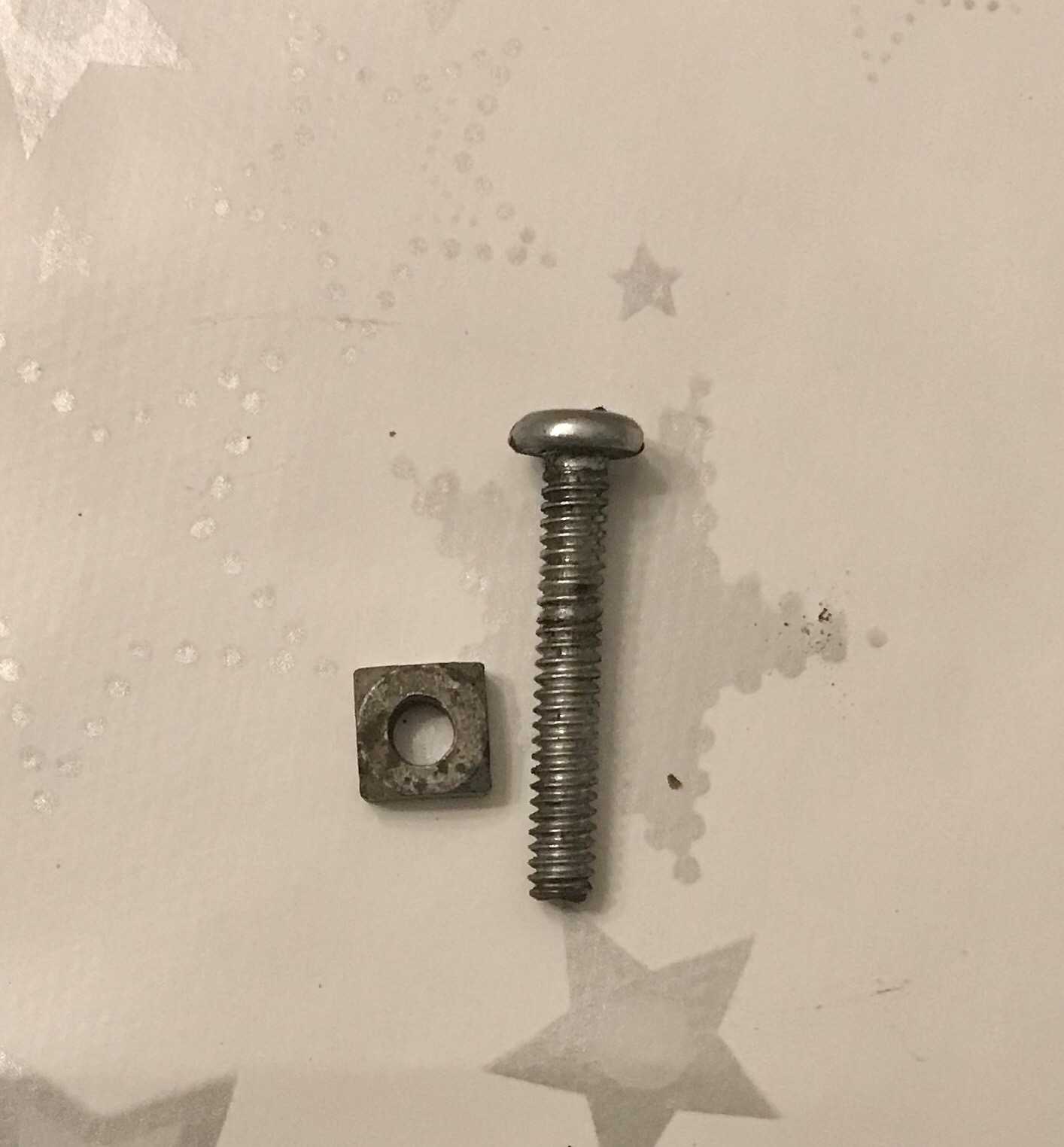

Jusr a nut and threaded screw  is placed to hold the carrier in place







247578ea-33fd-4daf-b768-1e0d6095444e.jpeg 7dd994e4-76b6-42ac-9580-e73843742c93.jpeg 3c804067-474d-4411-a2fb-2c60c288fa20.jpeg

truss rod bracket required to make locking device for my 1940 ccm delivery bike if any one can part with one  i would really apreciate it thanks william rudolph

truss rod bracket required to make a steering lock for my delivery bike thanks william rudolph
