On the topic of Sabers…

I have this Saber. I was wondering if CCM made a "touring" model because of thenhuge cog or is that an aftermarket ad on. Also the unique CCM chain wheel.


3 Comments

Pics

401bc3f8-7f15-4362-9a16-f59259c3e907.jpeg 4e2c97a0-4d15-4ce8-9b65-90d57298f4a7.jpeg

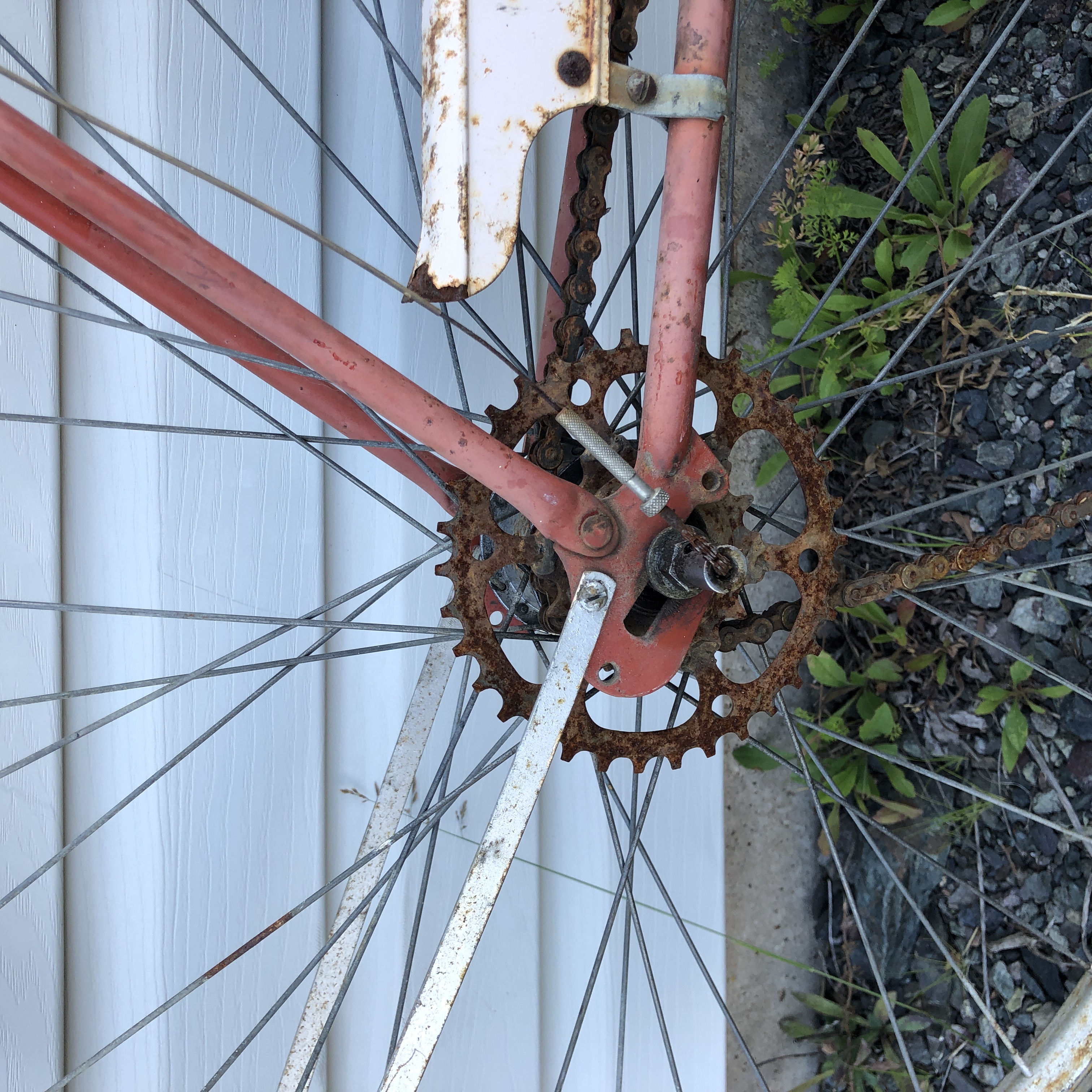

That is a modification by a previous owner.  They've taken a 34T, 6 pin chainring and welded it to the inside of a Sturmey-Archer sprocket. If you look closely, you can see the (poor) welds attaching the small sprocket to the web of the larger sprocket.




Ah...you have a real keen eye. I didn't see that. I can understand why they might do that. I find the gearing on most three speeds and single speeds high. But I don't think I would attempt this solution. Smaller chain wheel and/or larfer cogs might be a little leas radical.

Thanks!
